Fire-Rated Rolling Doors ASTA 500 Series
The ASTA America 500 Series is a UL-listed rolling fire door engineered for openings where fire-rated protection is required by building code. With fire ratings from 45 minutes up to 4 hours, the 500 Series meets the most demanding life-safety requirements for commercial buildings, hospitals, schools, warehouses, and industrial facilities throughout Greater Houston. The 500 Series lineup includes the standard 500 (non-insulated, up to 4-hour UL rating), the advanced 500i (insulated with mineral wool, up to 3-hour UL rating), and the compact 550 (counter shutter for smaller pass-through openings, up to 1.5-hour rating). All models feature fail-safe operation via fusible links, smoke detectors, or alarm systems — and are UL-labeled for complete code compliance and inspector confidence. At Halo Overhead Doors, our factory-trained technicians install, test, and service the full ASTA 500 Series in accordance with UL requirements and Houston building codes. From initial spec consultation through annual drop testing and maintenance, Halo is your complete fire door partner.
Models
Standard Rolling Fire Door (Up to 4-Hour UL Rating)

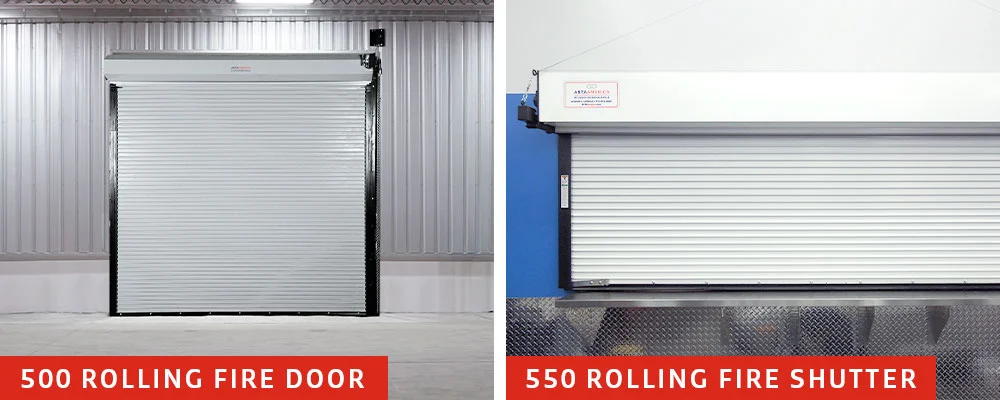

- Model 500: Standard Heavy Duty Rolling Fire Door — non-insulated. UL-listed for 45 min, 1.5 hr, 3 hr, and 4 hr fire ratings.
Insulated Rolling Fire Door (Up to 3-Hour UL Rating)
- Model 500i: Insulated Rolling Fire Door with mineral wool insulation (R-4.7). UL-listed up to 3-hour fire rating — ideal for climate-controlled facilities requiring both fire protection and thermal efficiency.
Fire-Rated Counter Shutter (Up to 1.5-Hour UL Rating)
- Model 550: Rolling Fire Counter Shutter for small pass-through openings. UL-listed for ¾ hr and 1.5 hr ratings. Compact design for pharmacies, cafeterias, concession stands, and service windows.
Options
- Slat gauge options: 22, 20, or 18-gauge galvanized painted steel — heavier gauges for larger or higher-cycle openings
- Stainless steel slats available on Model 500 for corrosive or specialty environments (not available on 500i)
- Vision panels — tempered glass inserts for visibility without compromising fire rating (Model 500 and 500i)
- Perimeter weather seal — top, side, and bottom seals for improved air infiltration control on everyday-use fire doors
- High-cycle springs: 25,000, 50,000, or 100,000 cycle ratings for doors used as regular service doors in addition to fire protection duty
- Auto-reset feature — allows drop test without manual reset; saves time during required annual fire door inspections
- Mounting options: between-jamb or under-lintel installation to suit your structural conditions (Model 500 and 500i)
- Motor operator compatible — powered operation available; motor must be wired to fire alarm system for automatic closure on signal
- Fusible link, smoke detector, or alarm system activation — all three trigger methods available; specify at time of order
- Custom colors via in-house powder coating through Halo — Envirocron™ XMR finish available for enhanced corrosion resistance
- Model 550 crank operation option in addition to standard push-up for counter shutter applications
Features & Benefits
500 Series — Standard Features (All Models)
- UL-listed and labeled — compliant with NFPA 80 Standard for Fire Doors and Other Opening Protectives
- Fail-safe operation: door automatically drops closed upon activation of fusible link, smoke detector signal, or fire alarm system
- Steel endlocks on all slats — prevents curtain from leaving guides under fire conditions or impact
- Enclosed steel hood — protects coil and hardware from damage and provides a finished appearance
- Durable finish: up to 30-year film integrity and 25-year no-fade limited paint warranty on painted steel models
- Compatible with all major fire alarm and building management systems — verify compatibility at time of specification
- Designed for use as everyday service door or in the open/up position — fire rating activates only upon alarm
Model 500 — Standard Rolling Fire Door
The flagship 500 Series fire door — the most versatile fire-rated rolling door available for large commercial and industrial openings.
| Fire Ratings | 45 min, 1.5 hr, 3 hr, and 4 hr — UL-listed for all four ratings. Specify required rating at time of order based on wall assembly and occupancy. |
| Slat Options | 22, 20, or 18-gauge galvanized painted steel. Stainless steel available. Specify gauge and material based on opening size and use frequency. |
| Mounting | Between-jamb (standard) or under-lintel mounting — accommodates varying headroom and jamb conditions. |
| Operation | Chain hoist standard. Motor operator available (must interface with fire alarm system). High-cycle springs: 25k, 50k, or 100k cycles. |
| Vision Panels | Available — tempered glass inserts for visibility while maintaining UL fire rating. |
| Weather Seal | Perimeter weather seal (top, sides, bottom) available — recommended for doors used as regular service doors in climate-controlled facilities. |
| Auto-Reset | Available — allows door to be reset and raised after drop testing without manual spring re-tensioning. |
| Activation | Fusible link, smoke detector, or alarm system — all three methods compatible. |
| Compliance | UL-listed per NFPA 80. Meets Texas state building code and Houston fire marshal requirements. |
| Warranty | Limited manufacturer warranty on materials and workmanship. Halo labor warranty on all installations. Annual inspection per NFPA 80 required to maintain code compliance. |
Model 500i — Insulated Rolling Fire Door (NEW)
ASTA’s most advanced fire door — combines UL fire rating with thermal insulation. The right choice when your fire door also serves as an everyday service door in a climate-controlled space.
| Fire Rating | Up to 3-hour UL fire rating. (Note: insulation limits maximum rating vs. standard 500 Series.) |
| Insulation | Mineral wool insulation — R-Value of 4.7. Provides significant thermal and acoustic performance on top of fire protection. |
| Slat Options | 22, 20, or 18-gauge galvanized painted steel with 24-gauge backer slat. Mineral wool fill between outer and backer slats. |
| Max Opening | Up to 30′ wide × 30′ high — not to exceed 600 square feet total opening area. |
| Activation | Compatible with alarm systems, fusible links, and smoke detectors. |
| Best For | Hospitals, food distribution centers, cold storage corridors, climate-controlled warehouses, and any fire-rated opening where thermal performance reduces energy costs. |
| Compliance | UL-listed. Meets NFPA 80, IBC, and Houston fire code requirements. |
| Warranty | Limited manufacturer warranty. Halo labor warranty included. Annual NFPA 80 inspection required. |
Model 550 — Fire-Rated Counter Shutter
A compact fire shutter for pass-through openings where a full rolling fire door is not required. Commonly used in pharmacies, cafeterias, hotel front desks, and concession stands.
| Fire Ratings | ¾ hour and 1.5 hour UL-listed fire ratings. |
| Max Opening | Up to 12′ wide × 8′ high. |
| Slat Options | 22-gauge galvanized painted steel or stainless steel slats. |
| Operation | Manual push-up standard. Crank operation available for taller applications. |
| Seal | UL-rated jamb brush seal and flame baffle — prevents flame and smoke passage around curtain edges. |
| Activation | Fusible link standard. Smoke detector and alarm system compatibility available. |
| Best For | Pharmacies, cafeterias, hospital service windows, hotel desks, concession stands, and building corridors with pass-through openings. |
| Warranty | Limited manufacturer warranty. Halo labor warranty included. |
Applications & Ideal Use Cases
ASTA 500 Series fire doors are specified and installed wherever building code requires a fire-rated opening protective. Common Houston applications include:
- Hospitals & Healthcare: Corridor fire barriers in critical care zones, pharmacy shutters, and service areas — often specify 500i for thermal efficiency.
- Warehouses & Industrial: Interior fire walls separating storage areas, loading docks, and production zones in large facilities.
- Schools & Universities: Corridor separations, kitchen service areas, and building-to-building connections requiring fire-rated closures.
- Commercial & Office Buildings: Stairwell access, service corridors, parking garage entrances, and tenant separation walls.
- Hotels & Hospitality: Laundry rooms, kitchen service access, and service elevators where fire separations are required.
- Parking Garages: Garage-to-building entry points typically require 1-hour or 3-hour fire-rated door assemblies.
- Retail & Malls: Tenant separation walls, food court service areas, and enclosed mall service corridors.
- Cafeterias & Food Service: Model 550 counter shutters are ideal for cafeteria serving windows, pharmacy counters, and concession stands
- High-Rise & Mixed-Use: Multi-story building fire compartmentalization and mechanical room access requiring IBC-compliant fire ratings.
Why Halo Overhead Doors
- Factory-certified ASTA installers — trained specifically on 500 Series fire door installation, testing, and NFPA 80 compliance
- Fire door inspection services — annual drop testing and certification to keep your doors code-compliant and insurance-ready
- A+ BBB accredited business proudly serving Greater Houston since 1991 — over 35 years of commercial door expertise
- Houston’s largest overhead door showroom — 60+ full-size doors on display at 6631 Theall Rd, Houston, TX 77066
- Same-day estimates with code compliance review included at no charge
- In-house installation team — no subcontractors; factory-trained technicians on every fire door installation
- Licensed, bonded & insured for commercial and fire-rated door work throughout the state of Texas
- Serving all of Greater Houston — Pasadena, Katy, The Woodlands, Sugar Land, Pearland, Baytown, Conroe, and surrounding areas
⭐ 4.9 Google Rating · 4,800+ Doors Installed · Est. 1991 — ASTA is the preferred vendor for Halo Doors for commercial applications.
What Our
Customers Are Saying
Discover the largest garage door showroom in Houston! Stop by, meet our team, and explore the many styles and options we have on display.
What types of fire ratings are available?
Our fire doors are UL labeled with 4-hour, 3-hour, 1-1/2 hour, and 3/4-hour ratings, suitable for a variety of commercial and industrial applications.
Can these doors be customized to fit my opening size?
Yes, each unit is built to exact opening requirements, up to 32′ wide and 25′ high.
How quickly can I get a fire-rated door?
Most fire doors are available through our Quick Ship Program and can be manufactured and shipped within 1–2 weeks.
Are parts and maintenance readily available?
Yes, Cornell retains job records, and replacement parts are readily available for repairs.
What materials are used in the construction of fire doors?
Standard materials include G90 galvanized steel, stainless steel, and optional powder-coated finishes. Components like brackets, hood, guides, bottom bar, and curtain are all constructed for durability and fire resistance.
Do fire doors have safety features?
Yes, doors can include release devices, annunciators, vision windows, and UL-listed perimeter seals for enhanced safety and smoke control.
How are fire doors operated?
Fire doors can operate via push-up, hand chain, hand crank, or motorized systems. Fail-safe devices ensure automatic closing during alarms or power failures.
