Canyon Ridge® Collection Ultra-Grain® Series
The Canyon Ridge® Collection Ultra-Grain® Series is a low-maintenance alternative to real wood, featuring a 4-layer faux wood design. It includes an energy-efficient, polyurethane-insulated steel core with moisture-resistant composite overlays, delivering long-lasting durability and the authentic look of wood without the upkeep.
BY:
Overview
4-Layer Construction
Steel + insulation + steel + composite overlay.
Faux Wood-Look Composite
Faux wood composite overlays are molded from real wood to replicate authentic texture and detailed grain patterns. Choose Clear Cypress for Ultra-Grain® stained wood-look finishes or Mahogany for rich, solid paint colors.
Design Customization
Fifteen carriage house designs featuring optional windows and decorative hardware. Available primed, painted, or stained in 8 standard finishes, with ColorBlast® custom paint options in 1,500 colors.
Insulation
2" Intellicore® polyurethane insulation with a thermal break. R-Value of 18.4.
Door Reinforcement
WindCode® door reinforcement product available for high wind load applications.
Environmental Assurance
- California SB 1013
- Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
- Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
- New Jersey A-5583/S-3919 – Greenhouse Gas Bill
Design Options
Door Designs
Series 1
Canyon Ridge 4-LAYER DESIGN 11
Canyon Ridge 4-LAYER Design 12
CANYON RIDGE 4-LAYER DESIGN 13
Series 2

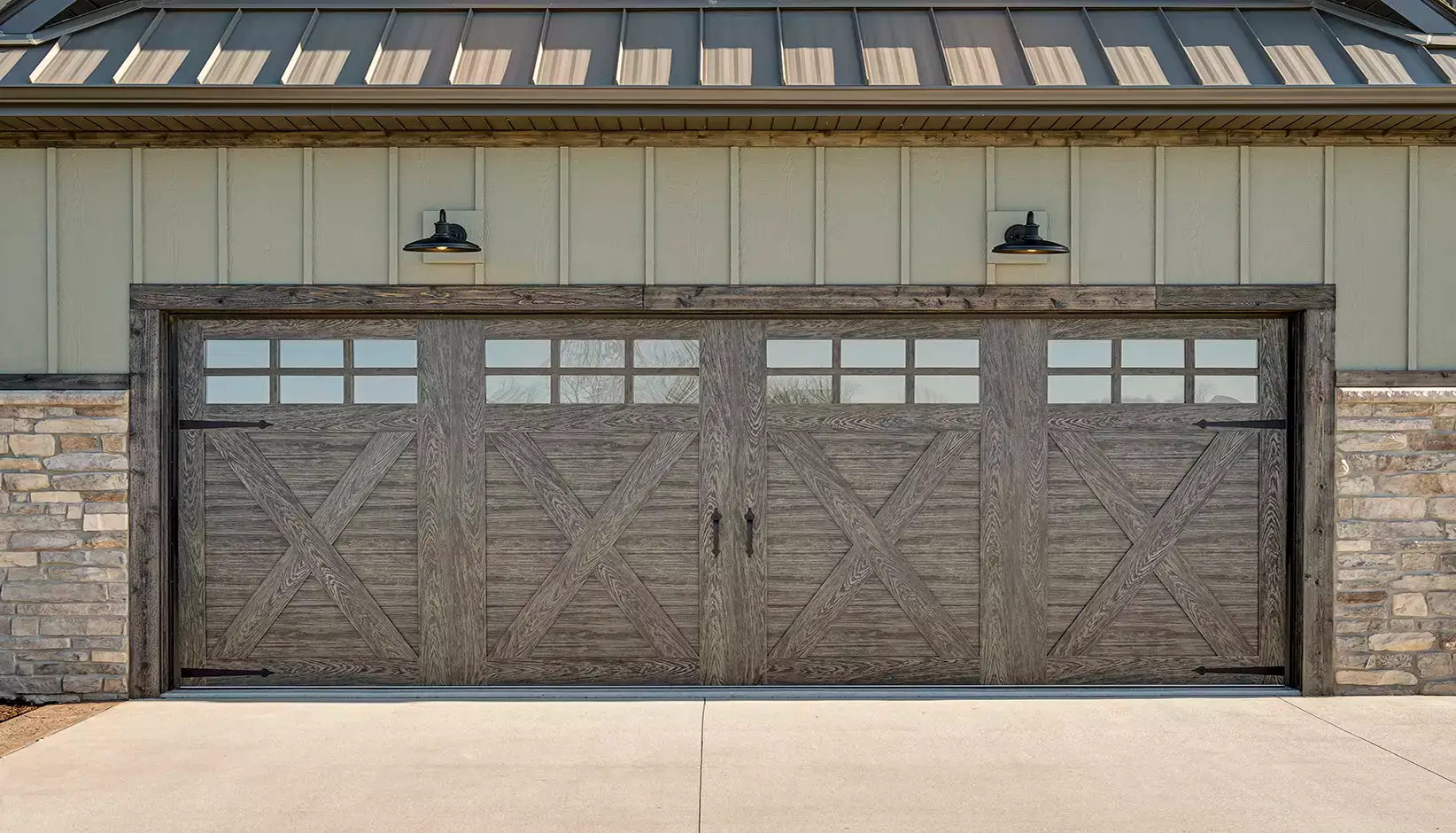

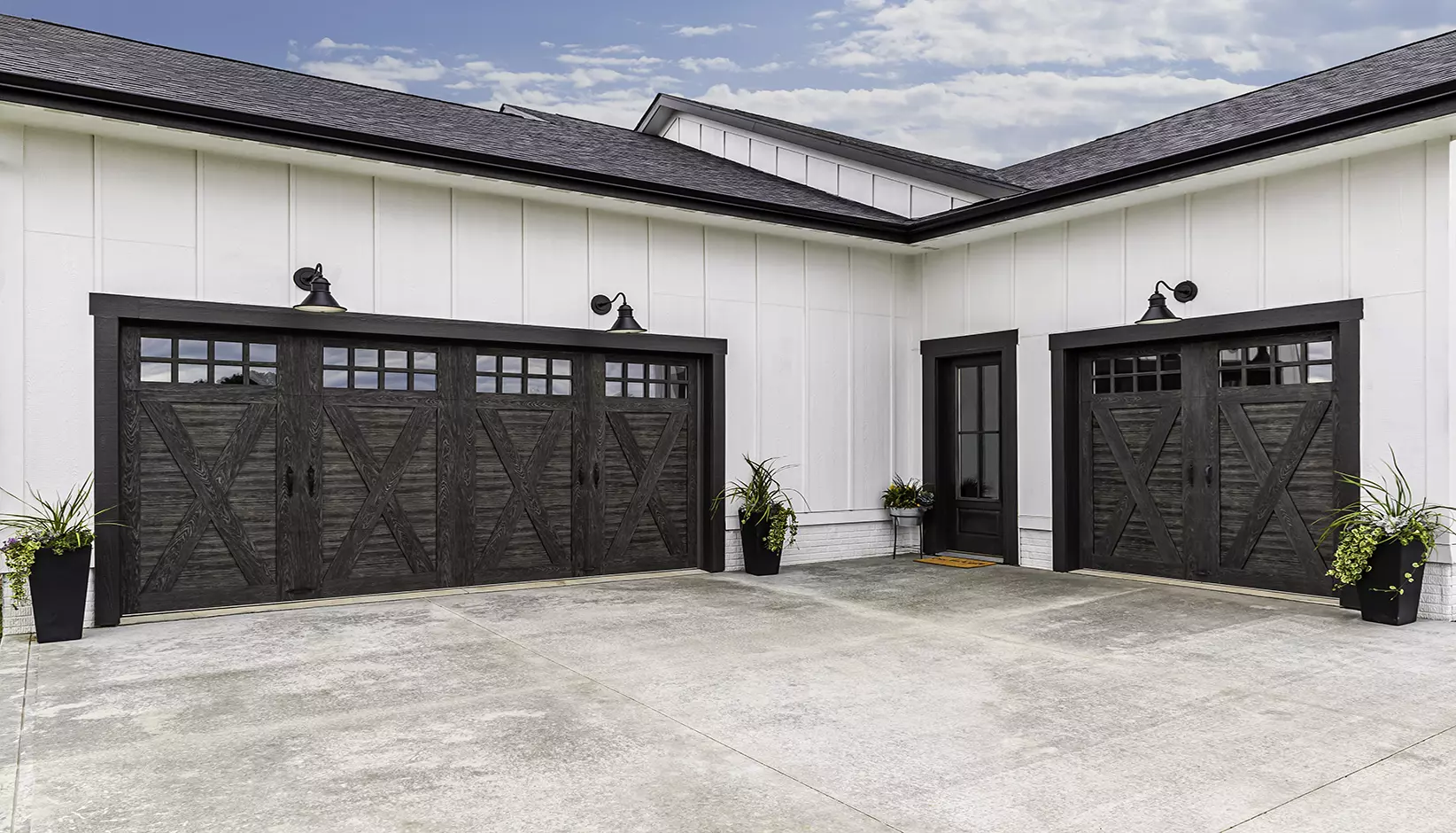

CANYON RIDGE 4-LAYER DESIGN 21
CANYON RIDGE 4-LAYER DESIGN 22
CANYON RIDGE 4-LAYER DESIGN 23
Series 3
CANYON RIDGE 4-LAYER DESIGN 31
CANYON RIDGE 4-LAYER DESIGN 32
CANYON RIDGE 4-LAYER DESIGN 33
CANYON RIDGE 4-LAYER DESIGN 34
CANYON RIDGE 4-LAYER DESIGN 35
CANYON RIDGE 4-LAYER DESIGN 36
CANYON RIDGE 4-LAYER DESIGN 37
CANYON RIDGE 4-LAYER DESIGN 38
Top Sections
WINDOW DESIGNS
Canyon Ridge 4-Layer Rec 11
Canyon Ridge 4-layer REC13
Canyon Ridge 4-Layer REC14
Canyon Ridge 4-Layer SQ23
Canyon Ridge 4-Layer SQ24
Canyon Ridge 4-Layer Arch 1 Windows
Canyon Ridge 4-Layer Arch3
Canyon Ridge 4-Layer Arch4
Canyon Ridge 4-Layer Arch13
Canyon Ridge 4-Layer Arch14 windows
Solid Top Sections
Canyon Ridge 4-Layer TOP11
Canyon Ridge 4-Layer Top12
CANYON RIDGE 4 layer TOP 13
Canyon Ridge 4-Layer Arch1 Solid
Double Top Sections
Canyon Ridge 4-Layer ARC1A-SOLID-Double Door
Canyon Ridge 4-Layer ARC1A-WINDOW-Double Door
Canyon Ridge 4-Layer ARC13A-WINDOWS-DOUBLE DOOR
Canyon Ridge 4-Layer ARC3A-WINDOWS-Double Door
Canyon Ridge 4-Layer ARC4A-WINDOWS-Double Door
Canyon Ridge 4-Layer ARC14A-WINDOWS-DOUBLE DOOR
Colors
Request Color Samples
Available on select models.
Black, white, bronze, and charcoal are available in Mahogany only.
Two-tone option available, with one color for the base layer (steel) and one color for the top layer (composite overlay).
Custom colors are available through the ColorBlast® program.
Hardware Designs
Plates
Handles
Hinges
Construction
Clopay® Canyon Ridge® Carriage House (4-Layer) garage doors are engineered for strength, durability, and long-term performance. These doors feature a robust steel base combined with low-maintenance, moisture-resistant composite overlays designed to resist rot, warping, and cracking.
Cutaway: Canyon Ridge® 4-Layer Construction
- Composite Overlay
- Steel with Ultra-Grain® Paint Finish (shown) or Solid Color Steel
- 2″ Intellicore® Polyurethane Insulation
- Steel
- Intellicore® Insulation
Intellicore® Insulation
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology offer an advanced solution for homeowners seeking superior performance. Intellicore is Clopay’s proprietary polyurethane foam that is injected into the door and expands to fill the entire structure. This process results in exceptional strength, enhanced energy efficiency, and long-lasting durability.
Additional Features
- Rust-Prevention System: Steel skins are protected by a durable, multi-layer coating system, including hot-dipped galvanizing, a protective metal oxide pretreatment, and a baked-on primer and top coat.
- Weather Protection: A replaceable vinyl bottom weather seal housed in a rust-resistant aluminum retainer helps block air and water infiltration.
- Safety Enhancement: The patented Safe-T-Bracket® helps prevent serious injury if the bottom bracket is removed while the garage door is closed and under tension.
- Durable Hardware: All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
- Energy Compliance: Meets the 2015 IECC air infiltration requirement of 0.40 cfm/ft² or less (IECC Section C402.5.2).
- Easy Maintenance: Window grilles are removable for convenient cleaning.
