Steel-Insulated Full View Doors | Aluminum Full View Doors
Designed for architectural applications that demand open visibility, natural light, and a sleek modern design, our full-view doors provide both functionality and style. Ideal as an exterior garage door, interior partition, or versatile patio door, these doors seamlessly merge indoor and outdoor spaces. Perfect for restaurants, service stations, car dealerships, fire stations, and industrial facilities, the full-view series maximizes daylight exposure while creating a distinct contemporary look.
BY:
Models

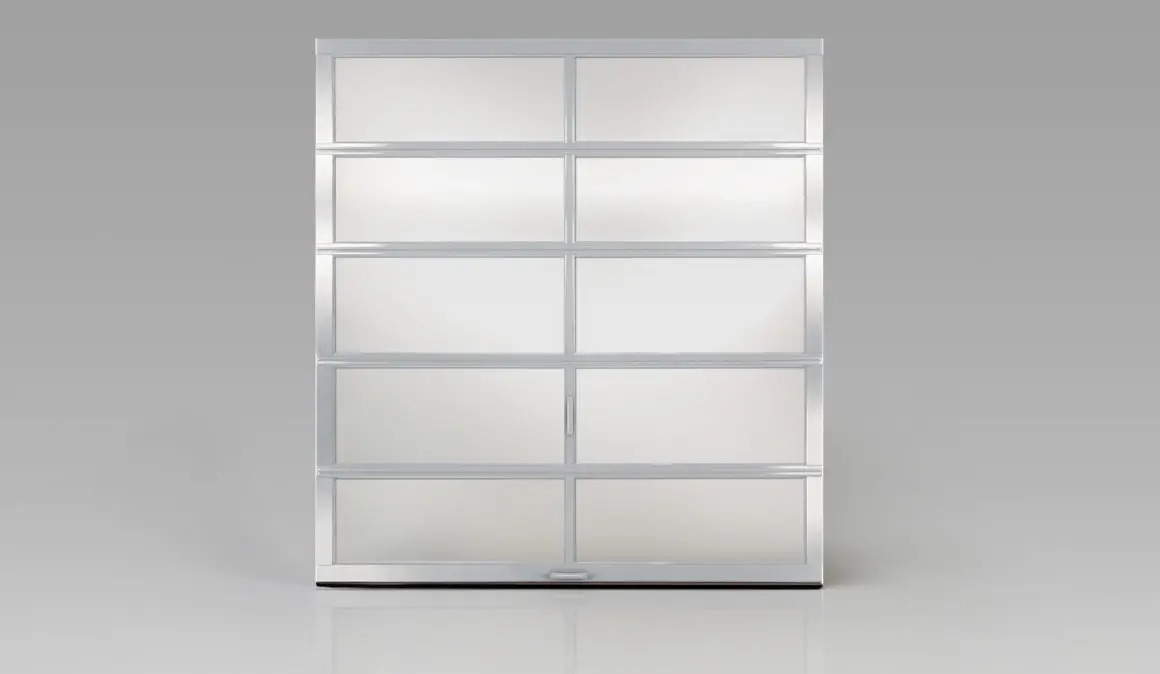

Full-View Aluminum (Traditional Panel Design)
- Model 904
Classic Full-View Aluminum — 2-1/8″ extruded aluminum frame with evenly spaced panel design and recessed smooth texture. The go-to choice for auto dealerships, car washes, fire stations, and retail showrooms where natural light and visibility matter. - Model 904U
Insulated Full-View Aluminum — same traditional panel design as Model 904 with polyurethane-insulated rails and stiles. R-value 3.8, U-factor 0.86, air infiltration rate 0.15 cfm @ 25 mph. Ideal for climate-controlled Houston showrooms and dealerships.
Sleek Full-View Aluminum (with Acrylic)
- Model 905
Sleek Full-View with Acrylic — minimal center stiles for a cleaner, more modern look with maximum glazing area. Acrylic panels offer lightweight impact resistance and are a cost-effective alternative to glass for car washes and restaurant patios. - Model 905U
Insulated Sleek Full-View with Acrylic — all the sleek styling of Model 905 with polyurethane-insulated rails and stiles for improved thermal efficiency in conditioned commercial spaces.
Sleek Full-View Aluminum (with Glass)
- Model 906
Sleek Full-View with Glass — the premium architectural statement. Minimal center stiles paired with tempered, insulated, tinted, or laminated glass for high-end dealerships, flagship retail, contemporary restaurants, and architectural storefront openings. - Model 906U
Insulated Sleek Full-View with Glass — combines the premium sleek-glass aesthetic of Model 906 with polyurethane-insulated rails and stiles. Best for conditioned luxury showrooms, restaurants, and Class-A retail where both appearance and energy performance matter.
Additional Information
- All six models available in four standard colors, five specialty anodized/painted finishes, plus RAL powder-coating and Clopay ColorBlast® custom paint.
- Frame-only list prices are shown in Clopay reference; glazing (glass or aluminum panel) required for complete door pricing.
- Custom sizing and configurations available — contact Halo for project-specific requirements.
Options
- Glazing choice — 1/8″ single-pane, 1/4″ tempered, 1/2″ insulated, tinted (bronze/gray), laminated safety, or aluminum solid panels. Mix and match across sections.
- Insulation upgrade (U-models) — polyurethane-insulated rails and stiles delivering R-3.8 / U-0.86 with clear insulated glass, plus air infiltration of just 0.15 cfm at 25 mph.
- Track options — 2″ angle-mount standard lift included; 3″ track, low headroom front/rear mount, high-lift, full vertical lift, and follow-the-roof-slope layouts available for tight or non-standard openings.
- Standard color finishes — Clear Anodized, White, Chocolate, and Bronze (painted). Specialty finishes include Bronze Anodized, Dark Bronze Anodized, and Black Anodized.
- Custom color finishes — full RAL powder-coat chart plus Clopay ColorBlast® custom paint for brand-color matching (aluminum full-vision sections must be painted on both sides).
- Powder-coated track & hardware — factory-coated track and hardware box in Clopay White, Black, or any RAL color to match the door finish.
- High Performance hardware upgrade — 10-gauge end hinges, heavy-duty top brackets, and 3″ sealed rollers with 5/8″ stems for heavy-use commercial cycling.
- 8-year hardware warranty — extended coverage including the High Performance hardware upgrade, vs. the standard 1-year hardware warranty.
- High-cycle spring options — 25,000 / 50,000 / 100,000 cycle torsion springs for heavy-use openings (standard spring is 10,000 cycles). Galvanized spring upgrade also available.
- Solid shaft and double-end stiles — recommended on doors with vertical lift, high lift, follow-the-roof, or high-cycle spring configurations.
- Heavy-duty bottom rail, exhaust ports (3″ / 4″), keyed slide lock, and aluminum bridge struts — available across all six models.
- Perimeter sealing — top seal (25/50/100 ft boxes), reverse angle seal, and stop mold with vinyl seal to minimize air and water infiltration.
- Safety bottom brackets — tamper-resistant bottom brackets designed to contain torsion-spring force and prevent injury during service.
Features & Benefits
Architectural Full-View Series — Overview
- 2-1/8″ thick 6063-T5 extruded aluminum alloy frame — structural rigidity and corrosion resistance for Houston’s humid coastal climate
- Tongue-and-groove section joints with joint seal — tight weathersealing and smooth panel alignment
- Recessed panel design with smooth texture — clean architectural lines suitable for high-visibility storefronts
- Complete door hardware package included (except backhang angle iron) — end stiles and center stiles are pre-punched for faster installation
- 2″ angle-mount standard lift track, 10,000-cycle torsion springs, 14-gauge hinges, and commercial 10-ball steel rollers — engineered for commercial duty cycles
- Aluminum bottom retainer with black TPE astragal — flexible, weather-resistant floor seal that holds up in Houston heat
- Four standard colors plus five specialty finishes, RAL powder-coat, and ColorBlast® custom paint — unmatched finish flexibility in the commercial full-view category
- Limited warranty: 5-year finish / 5-year ColorBlast / 1-year material & workmanship / 1-year hardware (upgradeable to 8 years)
Models 904 & 904U — Full-View Aluminum (Traditional)
| Feature | Details |
|---|---|
| Design | Evenly spaced panel layout with traditional center stiles — a balanced, symmetrical look that reads clearly from the street and complements most commercial architecture. |
| Glazing | 1/8″ clear, tinted (bronze/gray), frosted, laminated safety, or 1/2″ insulated glass. Solid aluminum panels available as full or partial substitutes for glass. |
| Insulation (904U) | Polyurethane-insulated aluminum rails and stiles. R-3.8 / U-0.86 with clear insulated glass. Air infiltration 0.15 cfm @ 25 mph. |
| Hardware | 2″ angle-mount standard lift track, 10,000-cycle torsion springs, 14-gauge hinges, commercial 10-ball steel rollers, aluminum bottom retainer with TPE astragal. |
| Best For | Auto dealerships, fire stations, car washes, restaurants with patio service windows, retail showrooms, and storefronts where visibility and curb appeal matter. |
| Warranty | 5-year finish / 5-year ColorBlast / 1-year material & workmanship / 1-year hardware (upgradeable). Halo labor warranty included. |
Models 905 & 905U — Sleek Full-View with Acrylic
| Feature | Details |
|---|---|
| Design | Minimal center stiles with evenly spaced panel layout — maximum glazing area for a cleaner, more modern architectural look. |
| Glazing | Acrylic panels — lighter weight than glass, impact-resistant, and less likely to shatter on contact. Available in clear or tinted. |
| Insulation (905U) | Polyurethane-insulated aluminum rails and stiles for improved thermal performance in conditioned spaces. |
| Hardware | Same 2″ angle-mount lift track, 10,000-cycle torsion springs, 14-gauge hinges, and commercial 10-ball steel rollers as Models 904 / 904U. |
| Best For | Car washes, restaurants, breweries, and openings needing the sleek look of glass without the weight or replacement cost. |
| Warranty | Same as Model 904. Halo labor warranty included. |
Models 906 & 906U — Sleek Full-View with Glass
| Feature | Details |
|---|---|
| Design | Minimal center stiles with evenly spaced panel layout — maximum glass area for a premium architectural statement. |
| Glazing | 1/8″ clear, tinted, frosted, laminated safety, or 1/2″ insulated glass. Premium aesthetic and acoustic performance. |
| Insulation (906U) | Polyurethane-insulated aluminum rails and stiles. Combined with 1/2″ insulated glass for top thermal performance. |
| Hardware | Same 2″ angle-mount lift track, 10,000-cycle torsion springs, 14-gauge hinges, and commercial 10-ball steel rollers. |
| Best For | Luxury dealerships, flagship retail, Class-A restaurants, fine dining patios, and architect-specified storefront openings. |
| Colors | Standard: Clear Anodized, White, Chocolate, Bronze (Painted). Specialty: Bronze Anodized, Dark Bronze Anodized, Black Anodized. Plus RAL powder-coat and ColorBlast® custom paint. |
| Warranty | Same as Model 904. Halo labor warranty included. |
Models
Architectural Full-View Series — Model Configurations
- Model 904
Traditional Full-View Aluminum — evenly spaced panel design, non-insulated. The series baseline. - Model 904U
Insulated Traditional Full-View — polyurethane-insulated rails and stiles; R-3.8, U-0.86, 0.15 cfm @ 25 mph. - Model 905
Sleek Full-View with Acrylic — minimal center stiles, acrylic glazing, non-insulated. - Model 905U
Insulated Sleek Full-View with Acrylic — polyurethane-insulated rails and stiles. - Model 906
Sleek Full-View with Glass — minimal center stiles, glass glazing, non-insulated. - Model 906U
Insulated Sleek Full-View with Glass — polyurethane-insulated rails and stiles. Top-of-the-line configuration in the Architectural Full-View family.
| Feature | Details |
|---|---|
| Frame | 2-1/8″ thick 6063-T5 extruded aluminum alloy. Pre-punched end stiles and center stiles for faster, more accurate installation. |
| Section Joints | Tongue-and-groove with factory-installed joint seal for weather-tight panel alignment. |
| Panel Design | Recessed panel with smooth texture. Traditional evenly spaced stiles (904 / 904U) or minimal center stiles (905 / 905U / 906 / 906U). |
| Insulation (U Models) | Polyurethane-insulated aluminum rails and stiles. R-value 3.8, U-factor 0.86, air infiltration 0.15 cfm @ 25 mph (values with clear insulated glass). |
| Glazing | Glass (906 / 906U): 1/8″ single, 1/4″ tempered, 1/2″ insulated, tinted, frosted, or laminated safety. Acrylic (905 / 905U): clear or tinted. Solid aluminum panels available across all models. |
| Track | 2″ angle-mount standard lift track included. 3″ track, low headroom front/rear, high-lift, full vertical lift, and follow-the-roof-slope layouts available. |
| Springs | 10,000-cycle oil-tempered torsion springs standard. Optional 25,000 / 50,000 / 100,000 cycle springs for heavy-use installations. Galvanized spring upgrade available. |
| Hinges | 14-gauge commercial hinges standard. 10-gauge end hinges included in the High Performance hardware upgrade. |
| Rollers | Commercial 10-ball steel rollers. 3″ sealed rollers with 5/8″ stems included in the High Performance hardware upgrade. |
| Bottom Retainer | Aluminum bottom retainer with black TPE astragal — flexible floor seal that resists heat, ozone, and UV. |
| Finishes — Standard | Clear Anodized, White, Chocolate, Bronze (painted). |
| Finishes — Specialty | Bronze Anodized, Dark Bronze Anodized, Black Anodized, full RAL powder-coat chart, and Clopay ColorBlast® custom paint matching. |
| Hardware Warranty | 1-year standard. Upgradeable to 8-year hardware warranty (includes the High Performance hardware package). |
| Finish Warranty | 5-year finish / 5-year ColorBlast. |
| Material & Workmanship | 1-year Clopay limited warranty. Halo labor warranty included on all installations. |
Standard Features (All Six Models)
- 2-1/8″ extruded aluminum frame — 6063-T5 alloy for strength, corrosion resistance, and lightweight operation
- Tongue-and-groove section joints with factory-installed joint seal for weather-tight sealing
- Pre-punched end stiles and center stiles — faster, more accurate installation with fewer on-site modifications
- 2″ angle-mount standard lift track included in every door package
- 10,000-cycle oil-tempered torsion springs — commercial-grade lifting performance out of the box
- 14-gauge commercial hinges and commercial 10-ball steel rollers for sustained heavy-duty cycling
- Aluminum bottom retainer with black TPE astragal — heat-, ozone-, and UV-resistant floor seal
- Complete door hardware package included (except backhang angle iron, supplied per opening)
Model 904 / 904U Brochure
Full manufacturer specifications for the traditional Full-View Aluminum door and its insulated counterpart (Clopay PDF)
What Our
Customers Are Saying
Discover the largest garage door showroom in Houston! Stop by, meet our team, and explore the many styles and options we have on display.
What are the benefits of installing a commercial glass garage door?
Commercial glass doors provide natural light, visibility, and a modern aesthetic while maintaining security and durability for high-traffic commercial spaces.
Can commercial glass doors be used outdoors in Houston’s climate?
Yes, these doors are designed with weather-resistant materials and thermal breaks to withstand Houston’s heat, humidity, and occasional storms
Are there insulation options available for glass garage doors?
Yes, insulated glass options such as ½” insulated tempered panels are available to improve energy efficiency and maintain interior climate control.
What industries commonly use commercial glass garage doors?
Restaurants, car dealerships, fire stations, service stations, and industrial facilities often use these doors to maximize daylight and create an open, modern look.
Can I customize the colors and finishes of my glass garage door?
Yes, both steel and aluminum full-view doors offer multiple standard colors and premium custom finishes including RAL powder coat and anodized options.
What types of safety features do these doors include?
Commercial glass doors include photo eyes, sensing edges, reinforced stiles, and high-cycle torsion springs to ensure safe and reliable operation.
How do I maintain or repair a commercial glass garage door in Houston?
Regular inspections, lubrication of moving parts, cleaning of glass panels, and professional service for springs or tracks ensure long-term performance.
