Insulated Garage Doors

Polystyrene Insulated Steel Doors R-values to 9.1

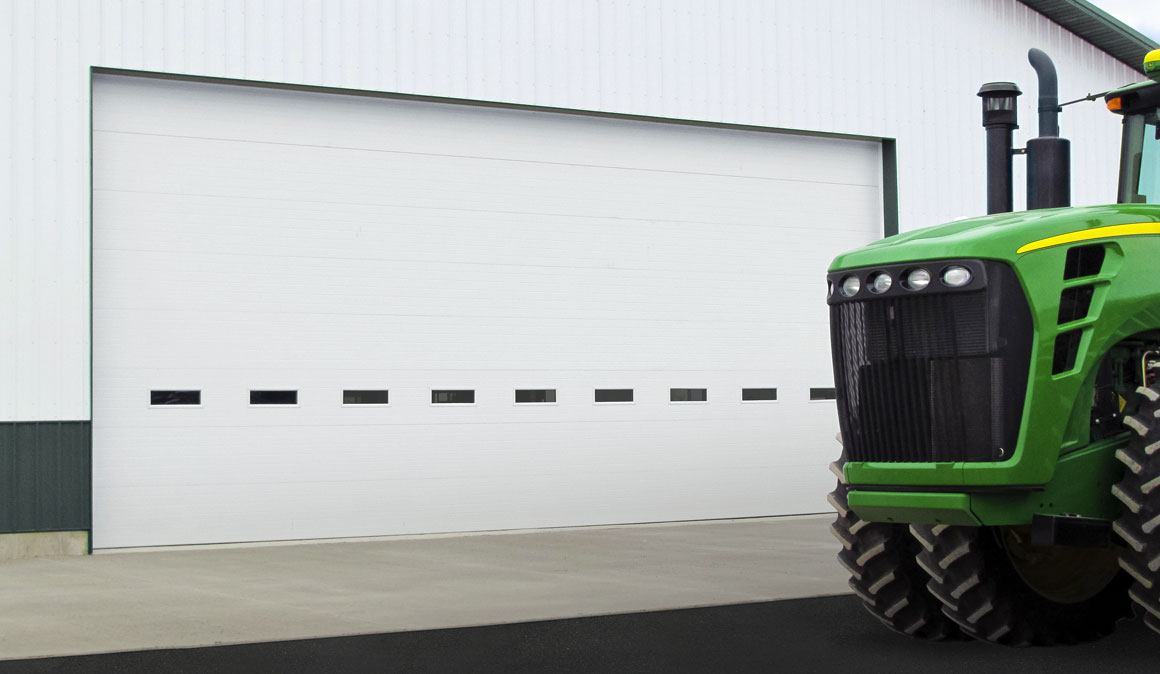

These high quality, polystyrene insulated steel sectional doors provide energy efficiency and reliable service under demanding conditions, making them ideal for use in municipal buildings, warehouses and shipping dock applications, or wherever value and energy efficiency is needed.
Contact us about this product
DOWNLOAD PRODUCT BROCHURE

by :
Clopay Garage Doors

Model Section
Thickness
Emboss Ext. Skin
Pattern
Ext. Steel
Gauge
R-Value* Thermal Break Max Width Max Height
3220 2" Stucco Flush 20 gauge 9.1 Thermally broken 26'2" 20'0"
3213 2" Woodgrain Raised panel 24 gauge 9.1 Thermally broken 24'2" 18'0"
3211 2" Woodgrain Flush 24 gauge 9.1 Thermally broken 26'2" 18'0"
3209 2" Stucco Minor Ribbed 24 gauge 9.1 Thermally broken 20'2" 18'0"
3208 2" Stucco Flush 24 gauge 9.1 Thermally broken 20'2" 18'0"
3200 2" Stucco Minor Ribbed 24 gauge 9.1 Thermally broken 26'2" 20'0"
3159 1-3/8" Stucco Minor ribbed 27 gauge 6.5 Thermally broken 18'2" 16'0"
3158 1-3/8" Stucco Flush panel 27 gauge 6.5 Thermally broken 18'2" 16'0"
3155 1-3/8" Woodgrain Flush panel 27 gauge 6.5 Thermally broken 16'0" 16'0"
3154 1-3/8" Woodgrain Raised panel 27 gauge 6.5 Thermally broken 16'0" 16'0"
3150 1-3/8" Stucco Minor Ribbed 27 gauge 6.5 Thermally broken 16'0" 16'0"


*Calculated door section R-value is in accordance with DASMA TDS-163

Polystyrene doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.

Design Options:

  • Windows
  • 24"x8"
  • 24"x12"
  • Full View (pre-painted white or brown or clear anodized)
  • Black frame Window with Rounded Corners

Colors:

  • White - All Models
  • Glacier White - 3150
  • Trinar® White - 3200, 3211, 3213
  • Chocolate - All Models
  • Mocha Brown - 3150
  • Black - 3200
  • Commercial Tan - 3150, 3200
  • Gray - 3150, 3154, 3155, 3200
  • Desert Tan - 3154, 3155, 3211, 3213
  • Trinar® Beige - 3200, 3211, 3213
  • Hunter Green - 3154, 3155
  • Sandtone - 3154, 3155, 3211, 3213
  • Almond - 3154, 3155, 3211, 3213
  • ColorBlast - All models

Performance Options:


  • High Cycle Springs (25K, 50K and 100K available)
  • 3" heavy duty track (where not standard)
  • Outside keyed Security Lock
  • Double End Stiles
  • Design pressure rated (WindCode)
  • Impact Rating
  • Photo eyes, sensing edges and Operators
  • Sustainable Door Upgrade
  • Header (top) and Jamb Seals

Custom Options:

  • Mullions
  • Breakaway Sections
  • Pass Door

MODEL 3200 / 3220

features 3200 and 3220
Panel Design: 2" thick stucco embossed steel with light ribbed (3200) or flush (3220) pattern
Steel Gauge: 24 gauge (.22" min) exterior (3200)
20 gauge (.034" min) exterior (3220)
27 gauge (.016" min) interior
Joint Design: Tongue & groove section joint with silicone filled thermal break prevents cold or heat from passing through the section
Termal Conductivity: R-value 9.1*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors: Pre-painted white, brown, tan or gray (3200)
Pre-painted white or brown (3220)
Trinar white (3200)
Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship


MODEL 3150 / 3154 / 3155

features 3150, 5154, 3155
Panel Design: 1-3/8" thick stucco embossed steel with micro groove pattern (3150)
1-3/8" thick rasied woodgrain embossed steel (3154)
1-3/8" thick flush woodgrain embossed steel (3155)
Steel Gauge: 27 gauge (.016" min) exterior; 27 gauge (.016" min) interior
Joint Design: Tongue & groove section joint with silicone filled thermal break prevents cold or heat from passing through the section
Termal Conductivity: R-value 6.5*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors: Pre-painted white, brown, commerical tan & gray (3150)
Pre-painted white, brown, desert tan, hunter green, almond, sandtone, bronze (3154, 3155)
Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship


*Calculated door section R-value is in accordance with DASMA TDS-163.

Models CAD BIM Shop Drawing Specification Literature(PDF) Instruction Manual(PDF) Warranty
Three Layer - Polystyrene - 1-3/8 inch
Model 3150 – micro-groove, 27 gauge     PDF IconDWG IconDXF Icon DOC IconRTF IconPDF Icon 3150 Brochure StandardSupplemental PDF Icon
Model 3154 – Raised panel, 27 gauge     PDF IconDWG IconDXF Icon DOC IconRTF IconPDF Icon 3150 Brochure StandardSupplemental PDF Icon
Three Layer - Polystyrene - 2 inch
Model 3200 – micro-groove, 24 gauge     DWG IconPDF IconDWG IconDXF Icon DOC IconPDF IconRTF Icon 3200 BrochureSustainable Upgrade StandardSupplemental PDF Icon
Model 3213 – Raised panel, 24 gauge     PDF IconDWG IconDXF Icon DOC IconRTF IconPDF Icon 3213 Brochure StandardSupplemental PDF Icon
Model 3220 – flush, 20 gauge   RFA Icon PDF IconDWG IconDXF Icon DOC IconRTF IconPDF Icon 3220 BrochureSustainable Upgrade StandardSupplemental PDF Icon


Click on appropriate icon to download
To use the Spec Wizard, click here

(What is Spec Wizard?)

SpecWizard


Track and Jamb Drawings

  dwg dxf pdf
Standard Track
Standard Track Follow the Roof Track
Low Headroom–Rear Mount Track
Low Headroom–Front Mount Track
High Lift Track
High Lift Follow-the-Roof Track
Vertical Track
Jamb Details

COMMERCIAL HARDWARE

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operation
  • Inside slide lock for increase security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles; 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements

COMMERCIAL TRACK APPLICATIONS

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.  Learn more

COMMERCIAL TORSION SPRINGS

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. . Click here for details
